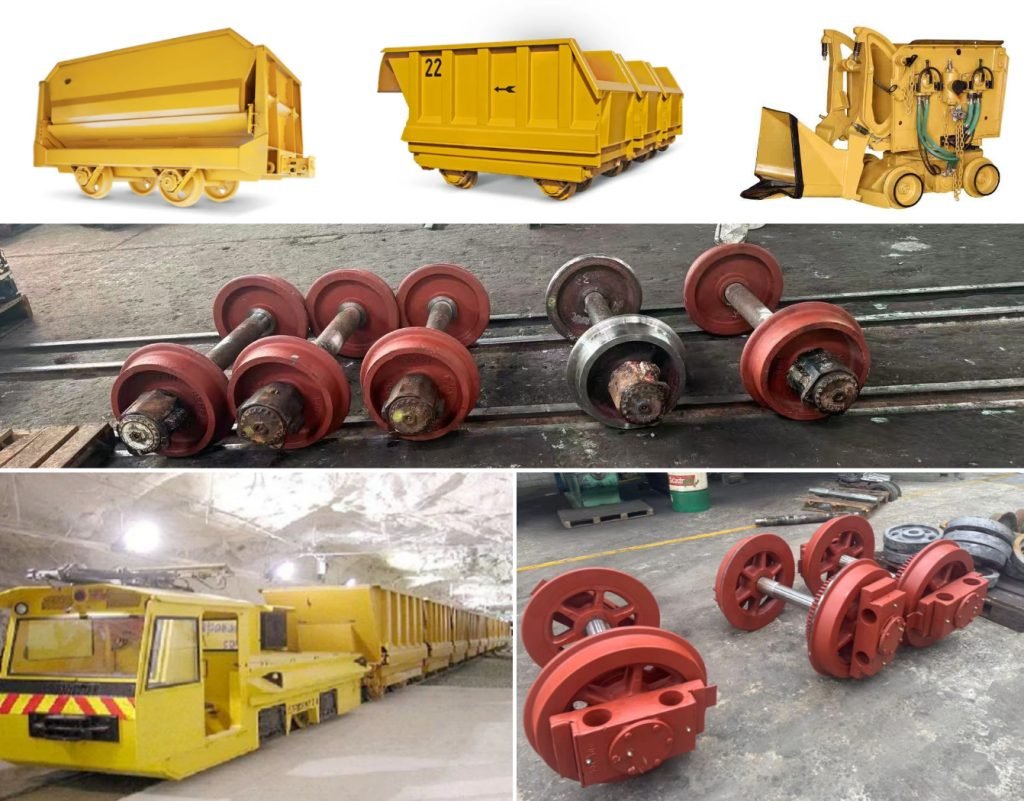

Mining cast wheels are core load-bearing components of mining vehicles (such as mining trucks, load-haul-dump machines, and dump trucks), directly affecting the operational safety, efficiency, and service life of the vehicles. Due to the harsh mining environment (heavy loads, dust, high and low temperatures, potential corrosive media, etc.), their selection requires comprehensive consideration of working conditions, materials, structure, performance, and other dimensions. Here is a detailed guide:
I. Clarify Operating Conditions: The Core Premise
Differences in mining scenarios directly determine the performance requirements of wheels. It is necessary to first clarify the following key information:
- Mine Type
- Open-pit mines: The road surfaces are mostly gravel and soil, with high impact loads. They are also affected by natural environments (rain, snow, high temperatures). Wheels need to have strong impact resistance and wear resistance.
- Underground mines: The space is enclosed, with a lot of dust, and there may be water accumulation or slight corrosion (such as seepage from slag). Wheels need to have both sealing performance (to reduce dust entering bearings) and corrosion resistance. Meanwhile, their size must be suitable for narrow passages.
- Vehicle Parameters
- Match the rated load capacity of the vehicle: The load-bearing capacity of the wheels must be ≥ the full load weight of the vehicle (including goods) to avoid overload fracture.
- Tire specifications: The wheel rim size must match the tire (such as diameter, width, and bead seat angle); otherwise, it will cause unstable tire installation or abnormal wear.
- Installation dimensions: The number of rim bolt holes, hole diameter, pitch circle diameter (PCD), and center hole diameter must match the vehicle axle head to ensure firm installation.
- Road Conditions
- Hard road surfaces (such as cement and compacted gravel): Wear mainly comes from rolling friction, so focus on the surface wear resistance of the wheels.
- Soft road surfaces (such as soil and slag): Vehicles are prone to 颠簸，with high impact loads. Wheels need to have high toughness (resistance to fracture).
- Special road surfaces (such as those containing sharp ores): The edge of the wheel rim needs to be scratch-resistant to avoid deformation caused by being cut by ores.
II. Focus on Core Materials: Determining Basic Performance

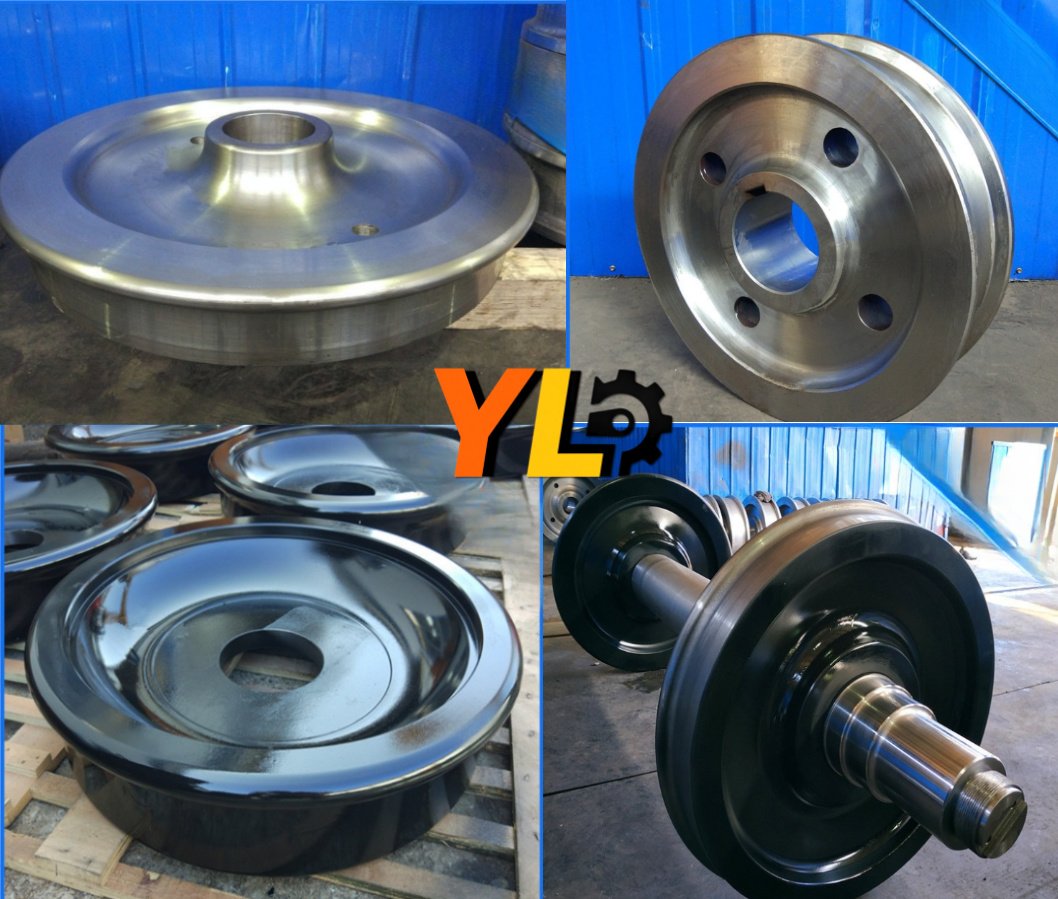

The material of cast wheels directly affects their strength, toughness, and wear resistance. Cast steel and ductile iron are commonly used in mining scenarios, with the following differences:
| Material | Performance Characteristics | Applicable Scenarios | Advantages and Disadvantages Comparison |
|---|---|---|---|
| Cast steel (e.g., ZG35CrMo) | High tensile strength (≥800MPa), good toughness, strong impact resistance, and excellent high-temperature stability. | Heavy-load (≥50 tons) and high-impact scenarios (such as dump trucks in open-pit mines). | Advantages: Top load-bearing and impact resistance. Disadvantages: Relatively heavy, high cost, and slightly lower wear resistance than ductile iron. |
| Ductile iron (e.g., QT500-7) | High strength (tensile strength ≥500MPa), good wear resistance (graphite structure plays a lubricating role), and moderate cost. | Medium-load (20-50 tons) and relatively smooth road scenarios (such as load-haul-dump machines in underground mines). | Advantages: Wear-resistant, lightweight (10%-15% lighter than cast steel of the same specification), and low cost. Disadvantages: Slightly weaker impact resistance than cast steel and prone to embrittlement at low temperatures. |
Selection Principles:
- For heavy loads (≥80 tons) and high-impact scenarios (such as transportation after blasting in open-pit mines), cast steel is preferred.
- For medium loads and scenarios where wear is the main issue (such as fixed-route transportation), ductile iron is preferred.
- For low-temperature environments (such as open-pit mines in northern China in winter), ordinary ductile iron should be avoided, and low-temperature tough cast steel (such as ZG270-500) can be selected.
III. Check Structural Design: Affecting Reliability and Adaptability
The structural design of cast wheels must balance “reasonable load-bearing” and “adaptability to working conditions”. Focus on the following:
- Spoke Structure
- Solid spokes: Strong load-bearing capacity and deformation resistance, but heavy and with poor heat dissipation (suitable for low-speed and heavy loads).
- Spoked spokes (with ventilation holes): Lightweight and good heat dissipation (reducing heat conduction during braking), but slightly weaker in impact resistance (suitable for medium-speed scenarios requiring heat dissipation, such as long downhill transportation).
Note: The connection between the spokes and the rim needs to have a fillet transition (to avoid stress concentration); otherwise, it is prone to fracture during 颠簸.
- Rim Edge
- Edge thickness: In mining scenarios, it should be ≥12mm (about 8mm for ordinary vehicles) to avoid deformation caused by impact from sharp ores.
- Bead seat: It needs to be smoothly processed (roughness ≤Ra12.5) to avoid scratching the tire bead (leading to air leakage).
- Sealing and Protection
- For scenarios with a lot of dust or water accumulation (such as underground mines), rims with dust-proof grooves or sealing rings should be selected to reduce dust and water entering the gap between the wheel and the axle head (to avoid bearing wear).
IV. Confirm Performance Indicators: Verify Reliability with Data
Check key performance indicators through test reports provided by manufacturers or industry standards:
- Load-Bearing Capacity
- Refer to the “rated dynamic load” (the maximum load the wheel can bear in a rolling state), which must be ≥ the single-wheel load when the vehicle is fully loaded (total vehicle weight ÷ number of wheels).
- It must pass the “static load test” (loading 1.5 times the rated load with no permanent deformation for 30 minutes).
- Impact Resistance
- Pass the “impact test” (simulating road 颠簸 and applying impact load on the rim edge), requiring no cracks or fractures.
- The impact absorption energy of cast steel wheels (-20℃) should be ≥27J, and that of ductile iron wheels (at room temperature) should be ≥15J (to avoid low-temperature brittle fracture).
- Wear Resistance
- Refer to the “hardness index”: The hardness of cast steel wheels should be ≥HB200, and that of ductile iron wheels should be ≥HB180 (the higher the hardness, the better the wear resistance, but toughness needs to be balanced to avoid brittleness due to excessive hardness).
- In actual use, the wear rate of the rim can be observed (high-quality wheels should have a service life 30% longer than ordinary products under the same working conditions).
- Casting Quality
- There should be no pores, sand holes, or shrinkage cavities on the surface (these defects will cause stress concentration and easily lead to fractures).
- There should be no internal cracks (detected by ultrasonic flaw detection).
Summary: Selection Process
- Clarify the mine type, vehicle load, and road conditions → determine basic needs.
- Select cast steel or ductile iron materials according to the load and impact strength.
- Match the vehicle tire and installation size → ensure adaptability.
- Check the structural design (spokes, rim) and performance indicators (load-bearing, impact resistance, wear resistance) → verify reliability.
Through the above steps, mining cast wheels can maximize their service life and reduce overall costs while meeting safety requirements.
