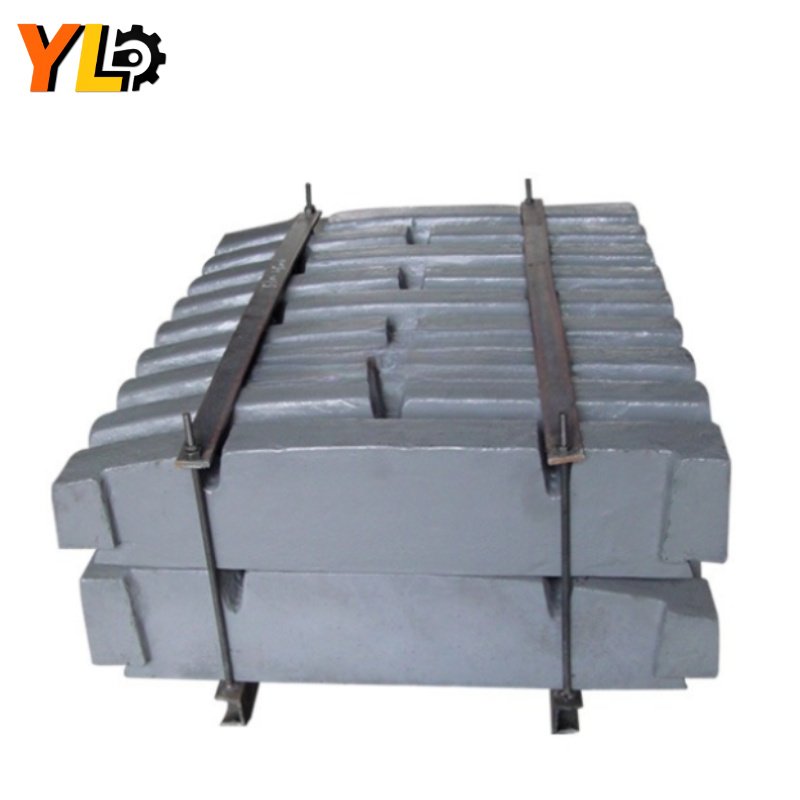

Wear Resistant Jaw Crusher Accessories Tooth Liner Plate
Material: High Manganese Steel (Mn13, Mn18), Alloy Steel (Cr-Mo-Ni), Customizable
A crusher liner plate (or crusher liner) is a vital wear-resistant component used in various crushers (e.g., cone crushers, impact crushers, ball mills) to protect the crusher’s main body from abrasion, impact, and wear caused by hard materials (rocks, ores, minerals, etc.). It extends the equipment’s lifespan and ensures stable crushing performance.
Get a quote
Wear Resistant Jaw Crusher Accessories Tooth Liner Plate
| Attribute | Details |
|---|---|
| Product Name | Crusher Teeth Plate / Jaw Crusher Plate |
| Material | High Manganese Steel (Mn13, Mn18), Alloy Steel (Cr-Mo-Ni), Customizable |
| Application | Jaw Crushers in Mining, Construction, Metallurgy, Recycling (for rocks, ores, concrete, etc.) |
| Type | Fixed Jaw Plate, Moving Jaw Plate; Coarse/Fine Crushing Plate |
| Size | Customizable (according to crusher models: e.g., PE200×300, PE500×750, etc.) |
| Hardness | ≥300 HBW (work-hardened to ≥500 HBW after use) |
| Thickness | 50mm – 300mm (customizable based on crushing intensity) |
| Tooth Design | Irregular protruding teeth; Tooth spacing: 10mm – 100mm (adjustable for output size) |
| Service Life | 300 – 1000 working hours (depending on material hardness and throughput) |
| Certification | ISO9001, CE, SGS (available upon request) |
| MOQ | 1 Piece (bulk orders with preferential pricing) |
| Packaging | Wooden Case / Pallet (anti-rust treatment + moisture-proof packaging) |
| Lead Time | 5 – 15 days (standard sizes); 15 – 30 days (custom sizes) |
| Payment Terms | T/T, L/C, Western Union, PayPal (negotiable for bulk orders) |
Key Features of crusher liner plate
Functions & Working Principle
FAQ
A: We are a high-quality manufacturer of wear-resistant parts for mining machinery and engineering machinery accessories in china.
A:Telegraphictransfer: 30% before shipment,balance payable against copy of bill of lading.L/C:sightL/C,30-dayL/C,60-dayL/C.
Main Products：
Owns abundant experience skilled technology in producing Ductile iron，high manganese steel, high chromium cast iron, alloy steel, carbon steel, heat-resistant steel and other castings. Products widely used in mining, cement, metallurgical, construction, metal recycling, engineering and other aggregate industries.（Mining wheels, mining axles, mining car connection buffers, crusher accessories, bucket teeth, mining grinding balls, wear-resistant castings, ductile iron castings, bearing boxes, mining crane pulley, mining chain, machining parts, etc.）
A:We provide pre-sale service,in-sale service and after-sales service,and always pursue long-term development and win-win
cooperation with you,adhering to the principle of customer first.
