Heavy & Light Railway Steel Rail China Manufacturer

Yinglin Casting is a professional railway steel rail manufacturer and supplier in China, specializing in the production and export of high-quality steel rails for railway construction, mining operations, and industrial applications. With years of experience in the steel industry, we provide comprehensive solutions for railway track systems worldwide.

Get a quote

Categories , Tags , , ,
Yinglin Casting is a professional railway steel rail manufacturer and supplier in China, specializing in the production and export of high-quality steel rails for railway construction, mining operations, and industrial applications. With years of experience in the steel industry, we provide comprehensive solutions for railway track systems worldwide.
Our railway steel rails are manufactured using premium-grade steel materials and meet international standards including GB (GB2585, GB11264), UIC, ASTM/AREMA, BS, and DIN standards. We supply a wide range of rail types including heavy rail, light rail, and crane rail to meet diverse project requirements.

Product Categories Section

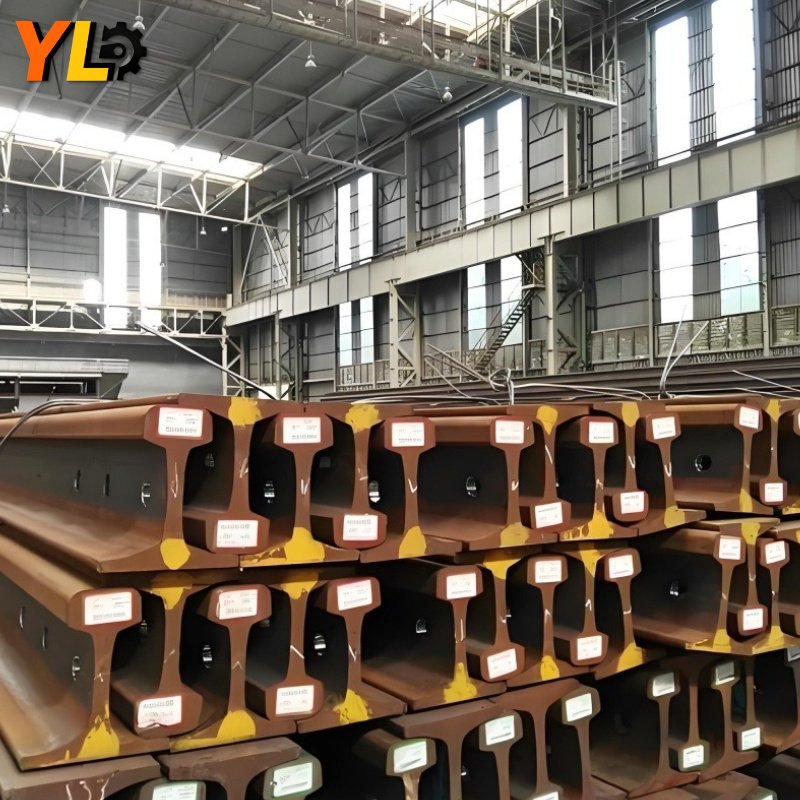

1. Heavy Rail (38kg – 75kg/m)

Heavy rails are designed for main railway lines, freight tracks, and heavy-load applications.
Specifications:
Type Weight Standard Material Length
38kg/m 38.733 kg/m GB/UIC/ASTM U71Mn/45Mn 9-12.5m
43kg/m 44.653 kg/m GB2585-2007 U71Mn 9-12.5m
50kg/m 51.514 kg/m GB/UIC U71Mn 9-25m
60kg/m 60.64 kg/m GB/UIC U71Mn/U75V 9-25m
75kg/m 75 kg/m GB U71Mn 9-25m



Applications: Main railway lines, high-speed railways, freight yards, heavy-haul transport

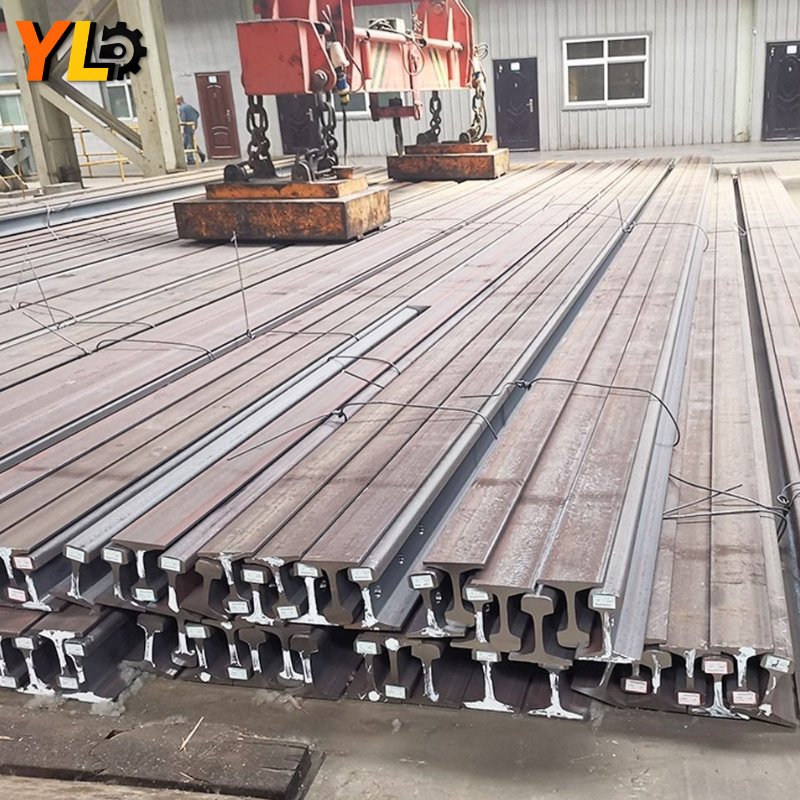

2. Light Rail (8kg – 30kg/m)

Light rails are ideal for urban rail transit, mining tracks, and factory railways.
Specifications:
Type Weight Standard Material Length
8kg/m 8.42 kg/m GB11264 Q235/55Q 6-10m
12kg/m 12.2 kg/m GB11264 Q235/55Q 6-10m
15kg/m 15.2 kg/m GB/JIS Q235/55Q 6-12m
18kg/m 18.06 kg/m GB Q235/55Q 6-12m
22kg/m 22.3 kg/m GB/JIS Q235/55Q 6-12m
24kg/m 24.46 kg/m GB Q235/55Q 6-12m
30kg/m 30.1 kg/m GB Q235/55Q/U71Mn 6-12m
Applications: Urban light rail, factory railways, mining tracks, tram systems, port railways

3. Crane Rail (QU70 – QU120)

Crane rails are specially designed for overhead crane systems and lifting equipment.
Specifications:
Type Dimensions (H×Bottom×Head) Weight Standard
QU70 120×70×70mm 52.8 kg/m YB/T5055
QU80 130×80×80mm 63.69 kg/m YB/T5055
QU100 150×100×100mm 88.96 kg/m YB/T5055
QU120 170×120×120mm 118.1 kg/m YB/T5055
Applications: Overhead cranes, gantry cranes, port cranes, industrial lifting systems

International Standards We Meet

We manufacture railway steel rails according to multiple international standards to serve global markets:
Standard System Standards Markets
GB (China) GB2585, GB11264, GB/T4697 China, Asia
UIC (International) UIC60, UIC54, UIC50 Europe, International
ASTM/AREMA (USA) AREMA 60LB-175LB USA, North America
BS (Britain) BS11, BS75A, BS80A UK, Commonwealth
JIS (Japan) JIS E1101, JIS E1103 Japan, Asia
DIN (Germany) DIN536, A55-A150 Europe, Middle East

Why Choose Yinglin Casting?

✅ Premium Quality

  • Made from high-quality carbon steel (U71Mn, 45Mn, Q235, 55Q)
  • Strict quality control throughout the manufacturing process
  • Each rail undergoes rigorous inspection and testing
  • Mill test certificates provided with every shipment

✅ Full Specifications

  • Comprehensive range: 8kg/m to 120kg/m
  • Custom lengths available: 6m to 25m
  • Both hot-rolled and heat-treated options
  • Various steel grades to meet your specific requirements

✅ Global Export Experience

  • Successfully exported to Africa, South America, Southeast Asia, Australia, and more
  • Familiar with international trade procedures
  • Professional packaging for safe ocean transportation
  • Complete export documentation (CO, CI, BL, PL, ML)

✅ Competitive Pricing

  • Direct from manufacturer, no middlemen
  • Flexible MOQ for different order sizes
  • Volume discounts available
  • FOB, CIF, CFR, EXW terms accepted

✅ Reliable Service

  • Professional technical support
  • Quick response within 24 hours
  • Customized solutions for your projects
  • After-sales support and documentation assistance

【Technical Parameters】

Parameter Details
Material U71Mn, U75V, 45Mn, Q235, 55Q
Manufacturing Process Hot rolling, Heat treatment (optional)
Surface Treatment Natural mill finish, Anti-rust oil (optional)
Tolerance ±1% on weight, ±0.5mm on dimensions
Straightness ≤0.5mm/m
Certification ISO 9001, Mill Test Certificate
Testing Chemical analysis, Mechanical testing, Ultrasonic testing

【Packing & Shipping】

Packing Type Application
Bundled with steel strips Standard export packaging
Container loading 20ft/40ft GP/HQ containers
Bulk cargo For large orders, cost-effective
Wooden crate Optional for protection

【Application Industries】

Our railway steel rails are widely used in:
  • 🚂 Railway Construction – Main lines, branch lines, high-speed rail
  • ⛏️ Mining Industry – Underground mining tracks, surface rail systems
  • 🏭 Industrial Facilities – Factory railways, workshop tracks
  • 🚢 Port & Terminal – Container yards, port railways
  • 🏗️ Construction – Temporary tracks, construction railways
  • 🏭 Crane Systems – Overhead cranes, gantry cranes, portal cranes

【FAQ – Frequently Asked Questions】

Q: What is the minimum order quantity?
A: Our MOQ is typically 20 tons per specification. For mixed specifications, the total order should be at least 1x20GP container.
Q: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% balance against BL copy), L/C at sight, and other terms upon discussion.
Q: What is the delivery time?
A: Standard delivery is 15-30 days after order confirmation, depending on order size and specifications.
Q: Can you provide samples?
A: Yes, we can provide small samples for quality inspection. Sample costs can be deducted from bulk orders.
Q: Do you offer custom specifications?
A: Yes, we can manufacture custom rail specifications based on your drawings or technical requirements.
Q: What certificates can you provide?
A: We provide Mill Test Certificates (MTC), quality reports, and can assist with third-party inspections (SGS, BV, CCI).
