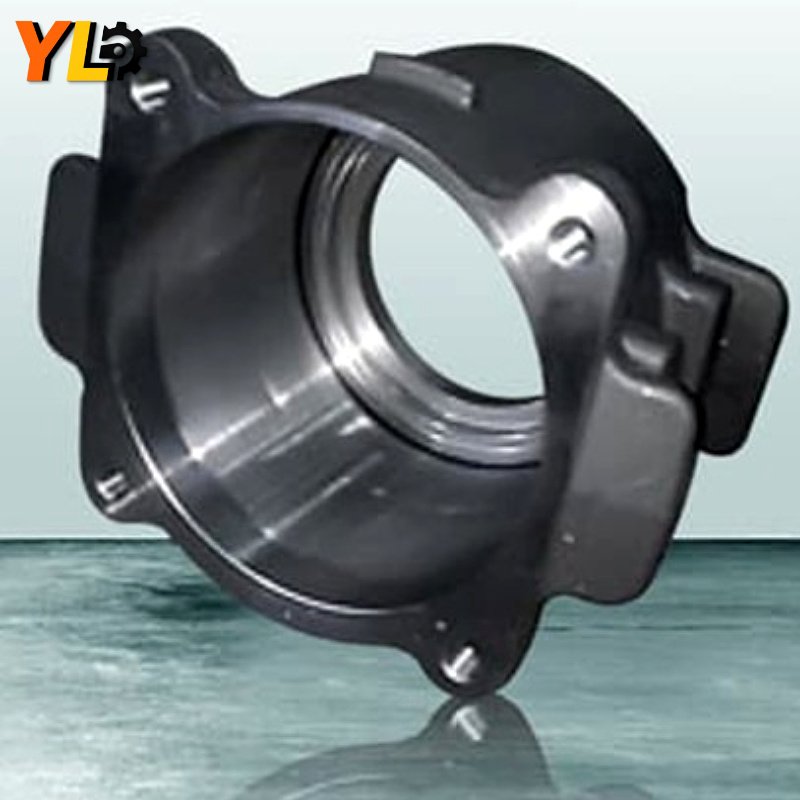

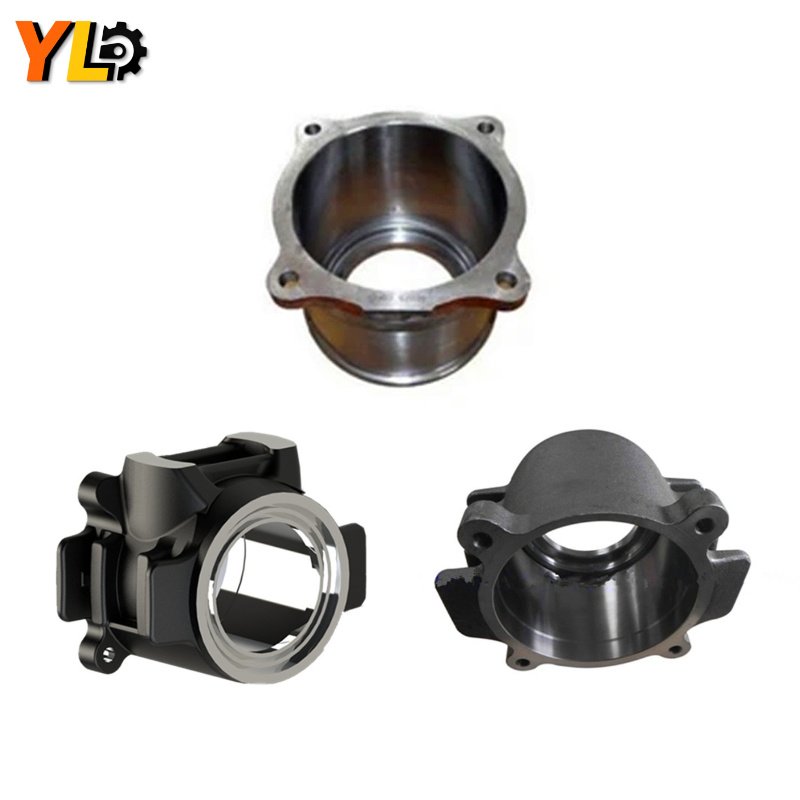

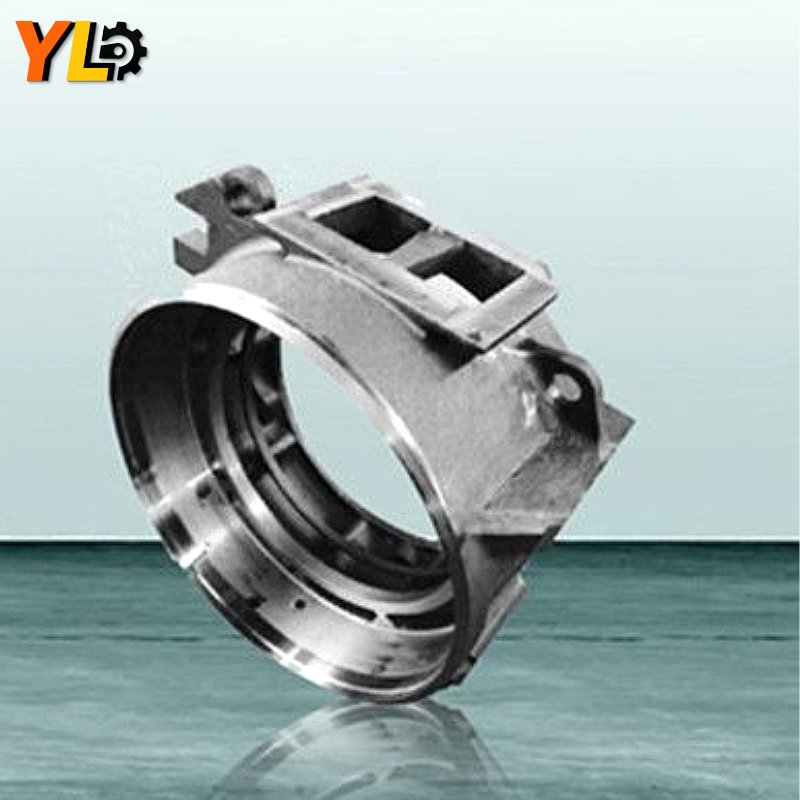

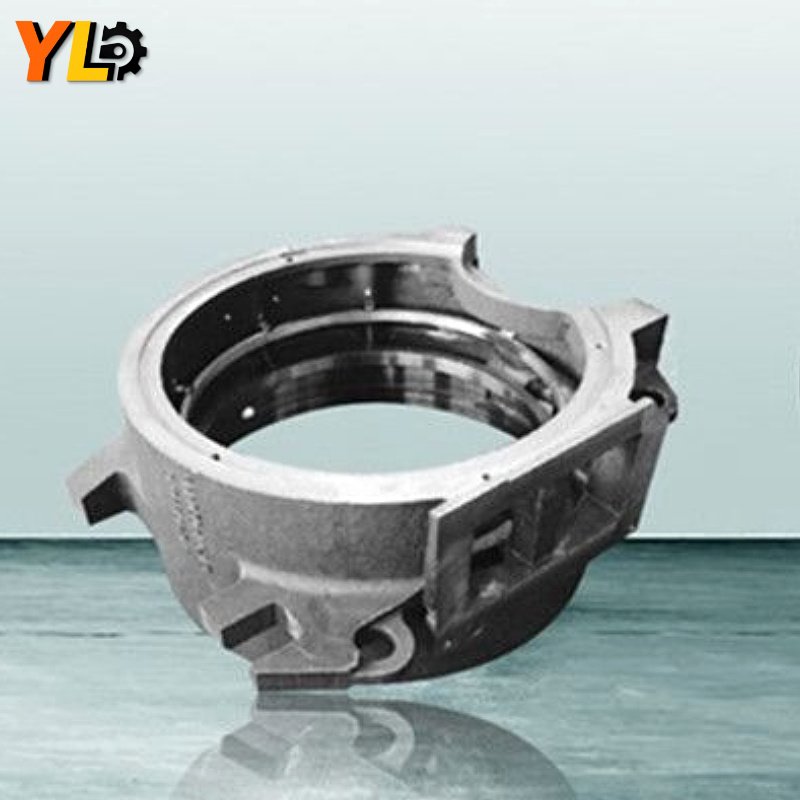

Railway Locomotive Bogies Casting Parts Axle Box Body
Our Railway Axle Box Body is a key load-bearing and connecting component between wheel sets and bogies, integrating connection, power transmission and protection. Adopting advanced casting processes and high-quality materials, it resists wear, corrosion and vibration, adapting to harsh environments. Applicable to freight locomotives, passenger trains and EMUs, it provides stable performance for railway safety.
Get a quote
As a core component of railway locomotive bogies, the Railway Casting Parts Axle Box Body ensures load-bearing, stable power transmission and bearing protection, critical to railway safety and reliability. Yinglin Casting, a professional high-end casting manufacturer, produces high-precision, durable axle box bodies complying with global standards and stringent railway operation requirements.
Product Overview
Our Railway Axle Box Body is a key load-bearing and connecting component between wheel sets and bogies, integrating connection, power transmission and protection. Adopting advanced casting processes and high-quality materials, it resists wear, corrosion and vibration, adapting to harsh environments. Applicable to freight locomotives, passenger trains and EMUs, it provides stable performance for railway safety.
Technical Specifications
|
Item
|
Specification
|
|
Material
|
Cast Steel, Ductile Iron, CGI 450 (see original for models)
|
|
Mechanical Properties
|
Tensile ≥485MPa, Yield ≥260MPa, Elongation ≥22%
|
|
Sealing Performance
|
IP67/IP68/IP69K; Double Lip + Magnetic Encoder
|
|
Operating Temperature
|
-40℃ ~ +80℃ (High-temp up to +150℃)
|
|
Vibration Resistance
|
EN 61373 (10-2000Hz, 5-15g)
|
|
Anti-corrosion Treatment
|
Thermal Spraying Zn-Al Alloy (≥200μm) + Epoxy Coating
|
|
Installation Method
|
Bolt Fastening / Interference Fit
|
|
Application
|
Freight/Passenger Trains, EMUs, Railway Bogies
|
Core Advantages
-
Superior Material & Structural Strength: Adopts cast steel (ZG270-500, ZG25MnCrNiMo) and ductile iron (QT400-18L, QT500-7) complying with TB/T3426-2015, with strict quality control. Topology-optimized design reduces weight by 30% while ensuring rigidity for long-term extreme load resistance.
-
Precision Casting & Machining: Utilizes precision casting and CNC machining for micron-level accuracy, meeting GB/T6060.1-1997 (surface roughness) and GB/T6414-1999 CT11 (tolerance). Ensures perfect fit with components, reducing friction and extending service life.
-
Excellent Sealing & Environmental Adaptability: Multi-layer labyrinth + magnetic fluid sealing achieves 99.97% contamination isolation (IP68). Temperature adaptive mechanism adjusts axial clearance to 0.05mm, ensuring stability at -40℃ to 150℃.
-
Rigorous Quality Control: Full-process quality management with UT/MT/Ray non-destructive testing (key parts ≥ level 2). All products comply with EN, AAR, ISO standards and hold FSC certifications, ensuring zero defects.
-
Customization Capability: Customizes specifications, materials and structures for solid/hollow axles (φ120-φ200mm). Professional R&D team provides one-stop solutions from design to sample trial production.
About Yinglin Casting
Yinglin Casting is a professional high-end railway casting manufacturer with decades of R&D, production and export experience. It has a complete production system and advanced equipment, exporting to over 40 countries to serve global railway operators and manufacturers.
Adhering to “quality first, customer-oriented”, Yinglin provides high-performance, cost-effective products. With professional R&D and strict quality control, it meets diverse customer needs and offers comprehensive after-sales support.
Contact Us
Yinglin Casting is your trusted partner for high-quality axle box bodies. Contact us for customized quotes and detailed information, and cooperate to promote global railway development.
