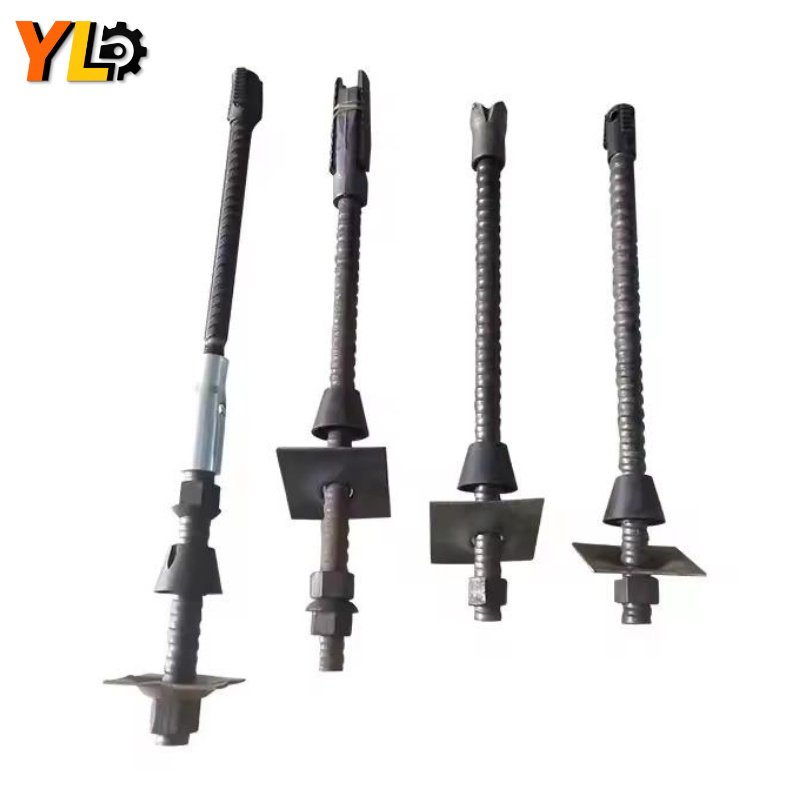

Mining Self-Drilling Hollow Grouting Anchor Bolt System for Underground Mine Roof & Roadway Support
Our self-drilling hollow grouting anchor bolt system is mining grade, designed specifically for underground mining applications. Heavy-duty, durable support for mine roofs, highways, stopes and crosscuts. This technique is designed to overcome the challenges of unstable, cracked and water bearing rock formations often seen in mining operations, combining drilling, grouting and anchoring into one efficient process.

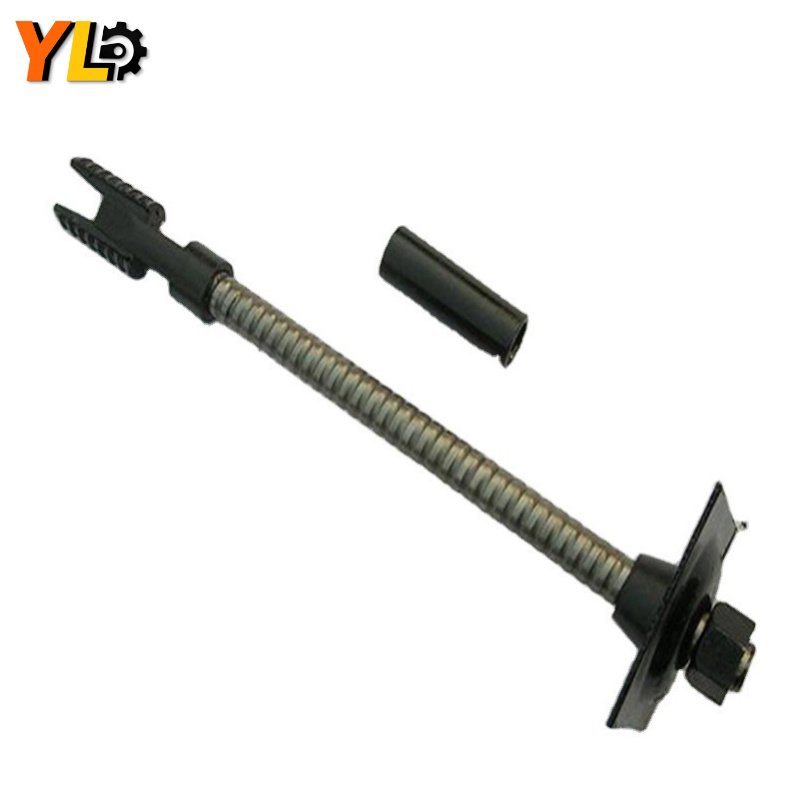

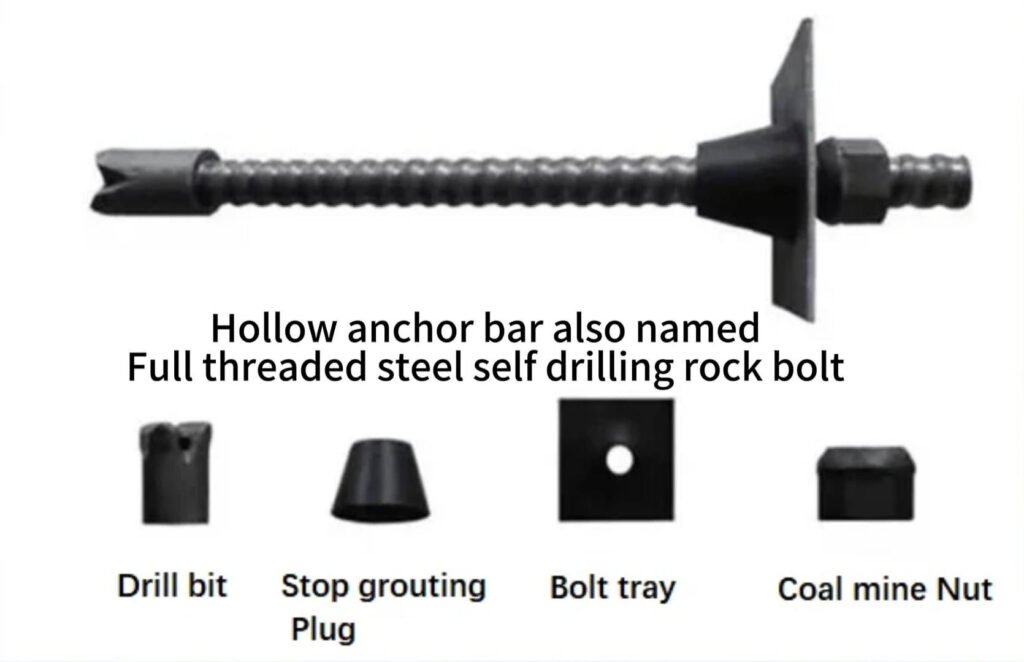

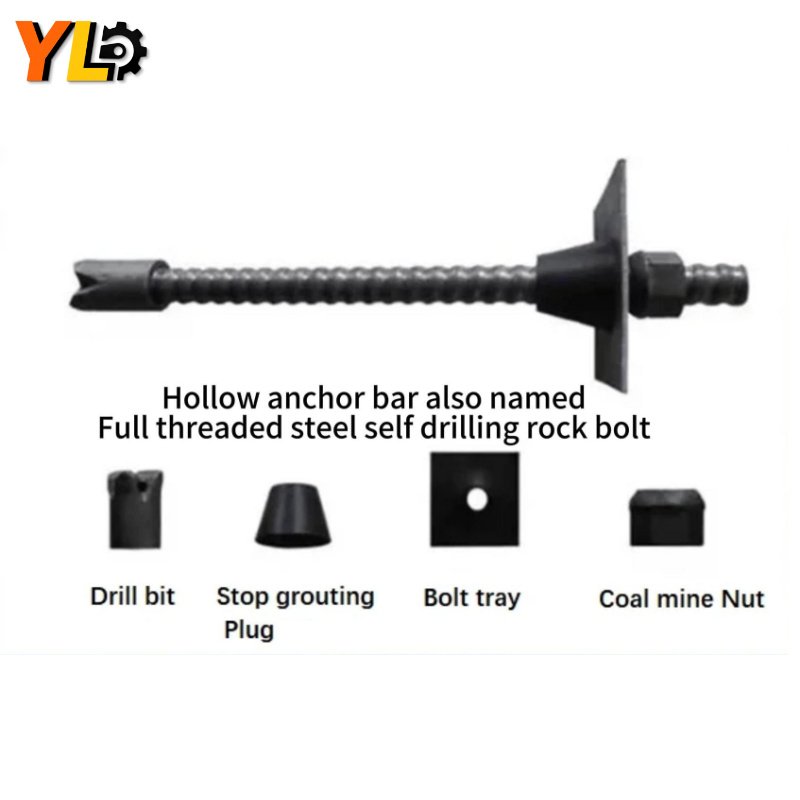

System Components
A complete self-drilling hollow grouting anchor bolt system includes the following components:
| Component | Description |
|---|---|

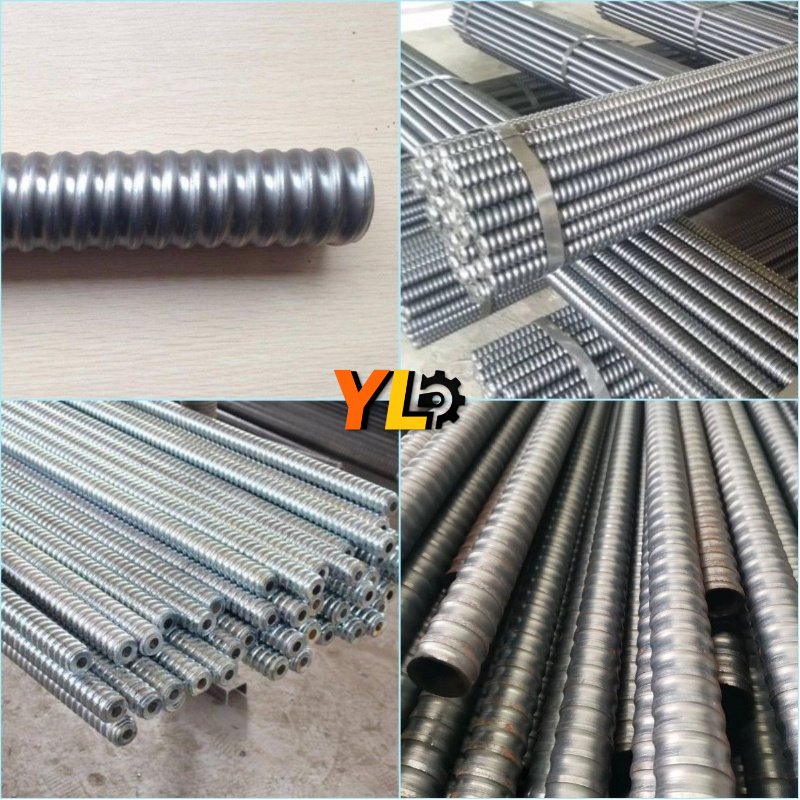

| Hollow Anchor Bar (Hollow Bolt Body) | The core component — a fully threaded seamless steel pipe with a hollow core. Features continuous external threads (R-type or T-type) for high bonding stress. It functions as a drill rod, grout pipe, and permanent anchor all in one. |
| Sacrificial Drill Bit | Attached to the leading end of the anchor bar. Available in multiple types for different ground conditions. Remains permanently embedded in the formation after installation. |
| Coupler | High-strength threaded connector used to join multiple bar sections together for unlimited total length. |

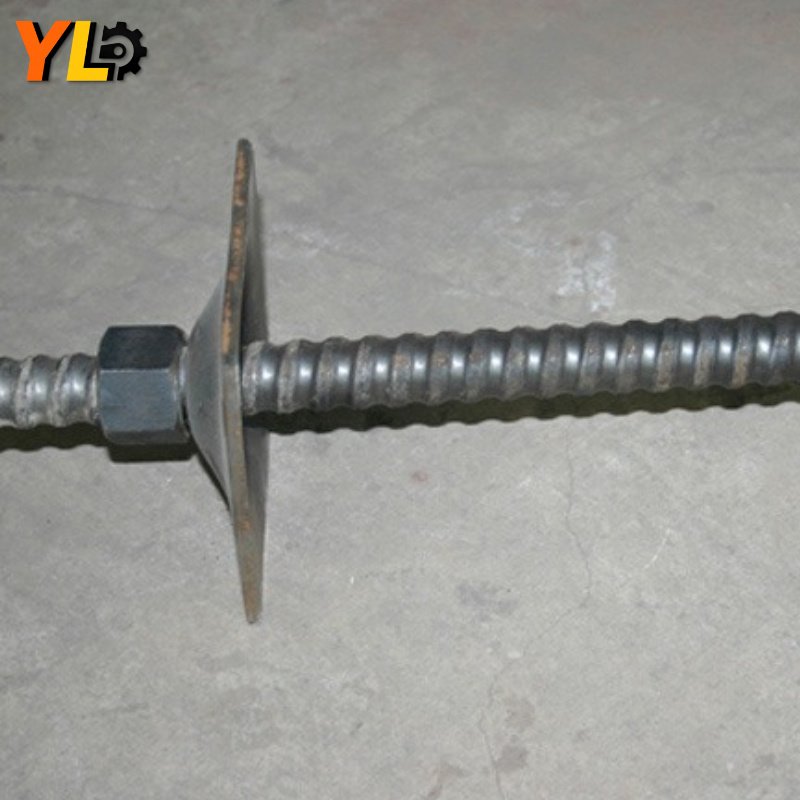

| Anchor Plate | High-strength steel plate that transfers load from the anchor to the bearing surface (typically 150×150mm or 200×200mm in size). |
| Anchor Nut | Hex or spherical nut that locks the system and applies tension to achieve active pre-stressed support. |
| Grouting Accessories | Includes grouting stopper, centralizer, and rotary grouting adapter for controlled pressure injection. |
The technique utilizes a high-tensile hollow steel bar with a continuous external thread and a reinforced drill bit, so eliminating the risk of hole collapse during installation, a major advantage in broken rock and soft ground where ordinary bolts are ineffective. The hollow core provides the possibility of continuous pressure grouting of the bolt, completely encasing the bar to prevent corrosion and creating a monolithic reinforced structure with the surrounding rock to guarantee higher load bearing capacity and long-term stability.

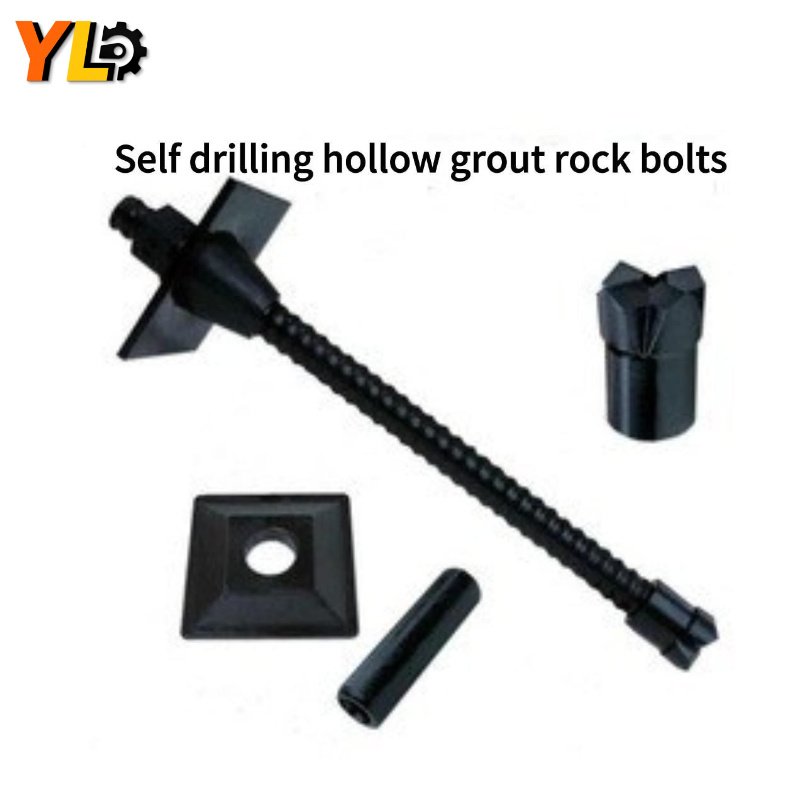

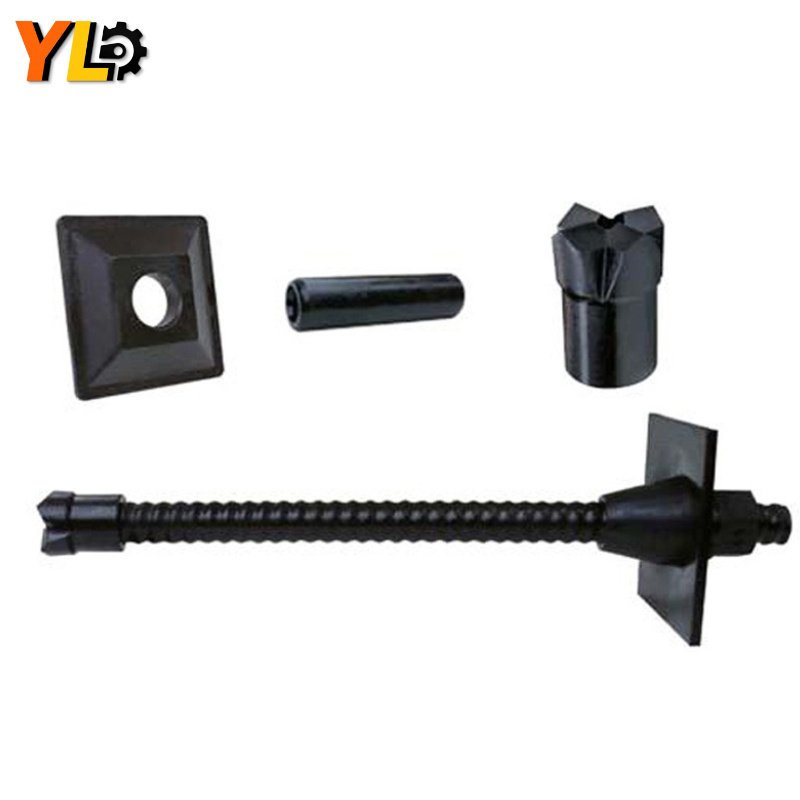

Each complete system comprises hollow anchor bar, self drilling bit, heavy duty bearing plate, coupling sleeve and nut, allowing fast, no tool assembly on site. We supply our anchor bolts in the usual mining specs (R25, R32, R38, R51) and custom lengths to suit the demanding safety and performance requirements of underground mining operations.
Main Benefits for Mining Applications:
✅ All-in-One Installation: No pre-drilling required, decreases cycle time and increases productivity in mine development
✅ Superior Ground Reinforcement: Full grout penetration provides a firm anchor bond, even in extremely fractured rock.
✅ Improved Safety & Longevity: Corrosion resistance grout encapsulation protects the bolt from hostile subsurface environments, extending service life.
✅Adaptable to Complex Geology: Works well in weak rock areas, fault lines, and water-bearing strata when traditional support systems are not enough.
✅ Low Cost Mine Support: Reduces labor, material, and maintenance costs over typical roof bolting.
Common Applications in Mining:
1.Underground mine roof support, Roadway support
2.Control of stope and crosscut stability
3.Prevention of rock bursts and high-stress ground conditions
4.Open pit slope and tailings dam stability
5.Underground mines support for caverns and haulageways
