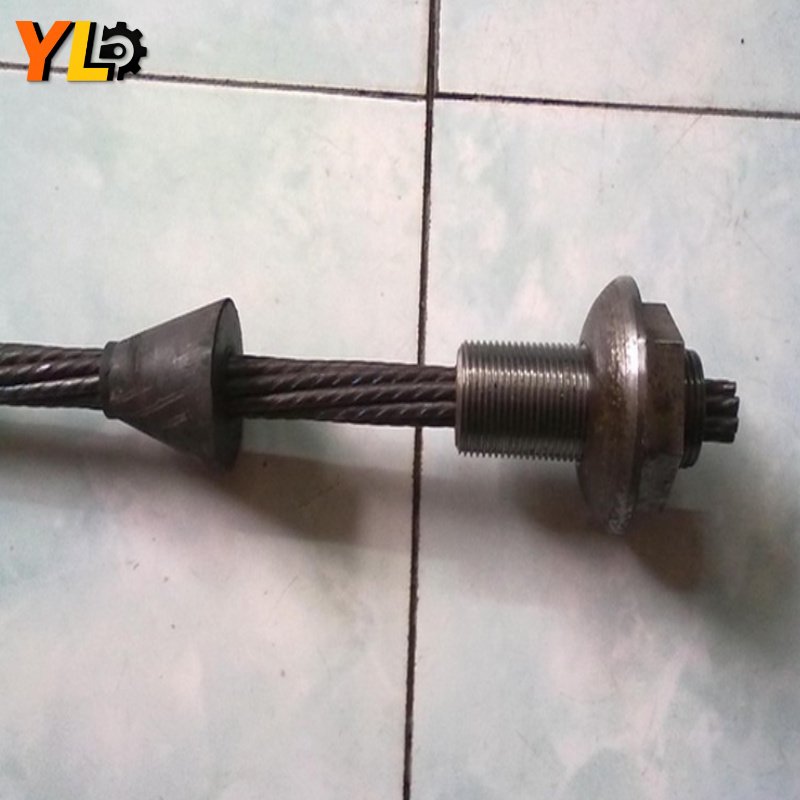

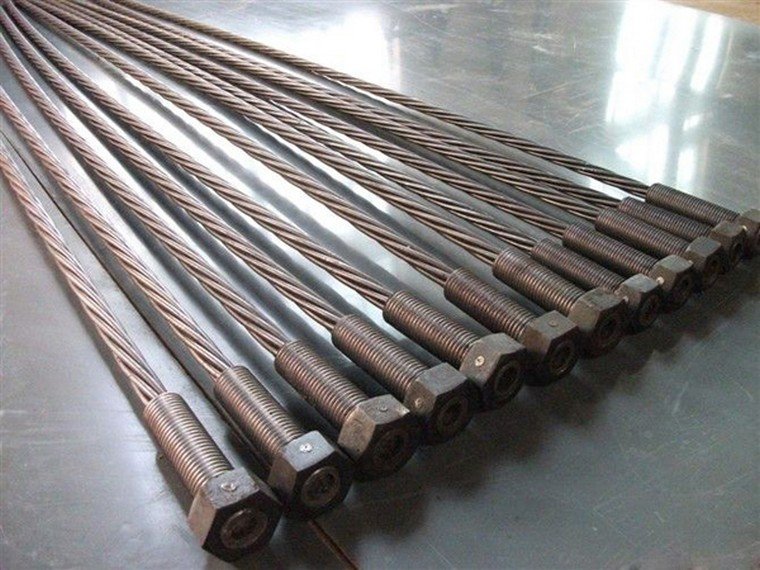

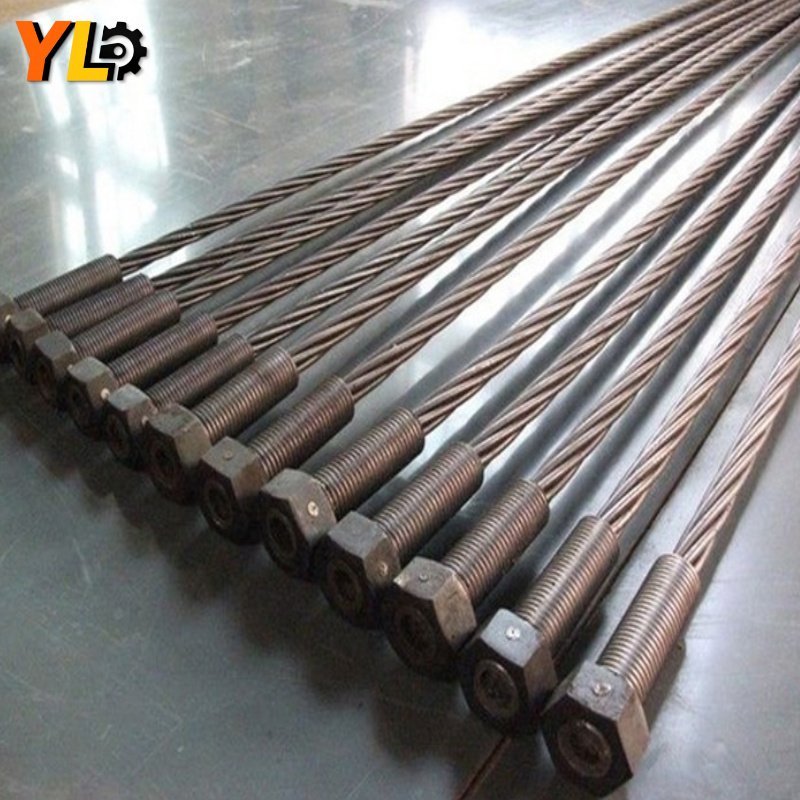

High Tensile 1860MPa Prestressed Steel Strand Anchor Cable with Threaded End & Hex Nut for Mining

High Tensile 1860MPa Prestressed Steel Strand Anchor Cable with Threaded End & Hex Nut for Mining - Image 3

High Tensile 1860MPa Prestressed Steel Strand Anchor Cable with Threaded End & Hex Nut for Mining - Image 4

High Tensile 1860MPa Prestressed Steel Strand Anchor Cable with Threaded End & Hex Nut for Mining - Image 5

High Tensile 1860MPa Prestressed Steel Strand Anchor Cable with Threaded End & Hex Nut for Mining - Image 6

High Tensile 1860MPa Prestressed Steel Strand Anchor Cable with Threaded End & Hex Nut for Mining

High tensile 1860MPa prestressed steel strand anchor cable for coal mine, tunnel, slope stabilization – Factory supply. Complete assembly with threaded end and hex lock nut, custom diameter and length available. Optional galvanized anti-corrosion treatment, support customized project.

Get a quote

Prestressed Steel Strand Mining Anchor Cable

A prestressed steel strand anchor cable is used as a major heavy-duty support element in a wide range of applications, including underground mining, tunnel construction and geotechnical engineering reinforcement.

This finished anchor cable adopts a multi-strand low-relaxation PC steel wire strand, pre-processed integrated threaded end and a matched hex lock nut, realizing a fast on-site tensioning and locking operation. It can evenly transmit deep rock stress and integrate loose surrounding rock, effectively prevent roof collapse, rockslide and foundation deformation.

Our anchor cable has longer anchoring depth and larger bearing capacity compared with solid rock bolts, and it perfectly solves the supporting difficulty of large-span, fractured and soft rock layers. We provide custom size, surface anti-rust treatment and complete matching accessories to projects around the world in mining, infrastructure and geotech.

Core Product Advantages

1. Excellent raw material performance

Adopts standard 1860MPa low-relaxation prestressed steel strand, high breaking load, stable mechanical performance, long service life in complex underground environment.

2. Integrated Threaded End Design

Hot forged one piece thread processing, no wire scattered risk, perfect match of hex lock nut, easy tension construction without extra machining on site.

3. Full support for customization

Various standard diameters: Φ15.2mm/Φ17.8mm/Φ18.9mm/Φ21.6mm; arbitrary cutting length according to customer construction drawings.

4. Anti-Corrosion Surface Treatment (Optional)

Standard black oxide finish for dry mine roadway. Hot-dip galvanized treatment optional for humid, corrosive underground, coastal slope projects.

5. Broad Application Scenarios

Suitable for coal mine, metal mine roadway roof support, highway railway tunnel lining, mountain slope reinforcement, foundation pit reinforcement, dam foundation anchoring.

6. Direct Supply from Factory

Mass production capacity, stable stock, fast delivery, support third party inspection, professional engineer team to provide project technical solution customization.

Product Main Specifications

Raw Material: Low relaxation prestressed PC steel strand
Standard Tensile Strength: 1860MPa
Available Diameter: 15.2mm, 17.8mm, 18.9mm, 21.6mm
Surface Finish: Black Oxide / Hot Dip Galvanized
Matching Parts: Hex Lock Nut, Steel Pallet, Resin Anchoring Cartridge, Tension Jack
Custom Item: Length, Thread size, Anti-rust treatment, Packaging

Application Fields

Underground Coal Mine & Metal Mine Roadway Roof Support
Highway, Railway Tunnel Surrounding Rock Reinforcement
Mountain Slope & Road Cutting Stabilization Project
Urban Foundation Pit Deep Excavation Anchoring
Hydraulic Dam, Bridge Foundation Prestress Reinforcement

Frequently Asked Questions (FAQ)

Q1: What is the primary function of anchor cable for mining?

A1: It is used for reinforcing deep surrounding rock . It is the key supporting material for underground and geotechnical engineering, which by anchoring deep intact rock mass, tightens fractured shallow rock to avoid roof falling, rock collapse and slope sliding.

Q2: What is the tensile strength level of your anchor cable?

A2: The regular steel strand is 1860MPa low relaxation grade. We can customize it for a higher tensile strength grade to meet your project’s technical requirements.

Q3: Can you customize the size and diameter of anchor cable?

A3: Yes. All standard diameters and any cutting length are supported. You can send us your construction drawing or list of technical parameters for custom production.

Q4: Do you have anchor cable anti-rust galvanized?

A4: Yeah. Finishing: black oxide finish (standard product) For damp, corrosive working environment, such as water-rich mine and coastal slope, hot-dip galvanized anti-corrosion treatment is optional.

Q5: What matching accessories can you offer with anchor cable?

A5: We can provide the complete supporting set, including lock nut, support pallet, resin anchoring agent, tension jack, drilling bits, etc. One stop shopping for your mining support project.
