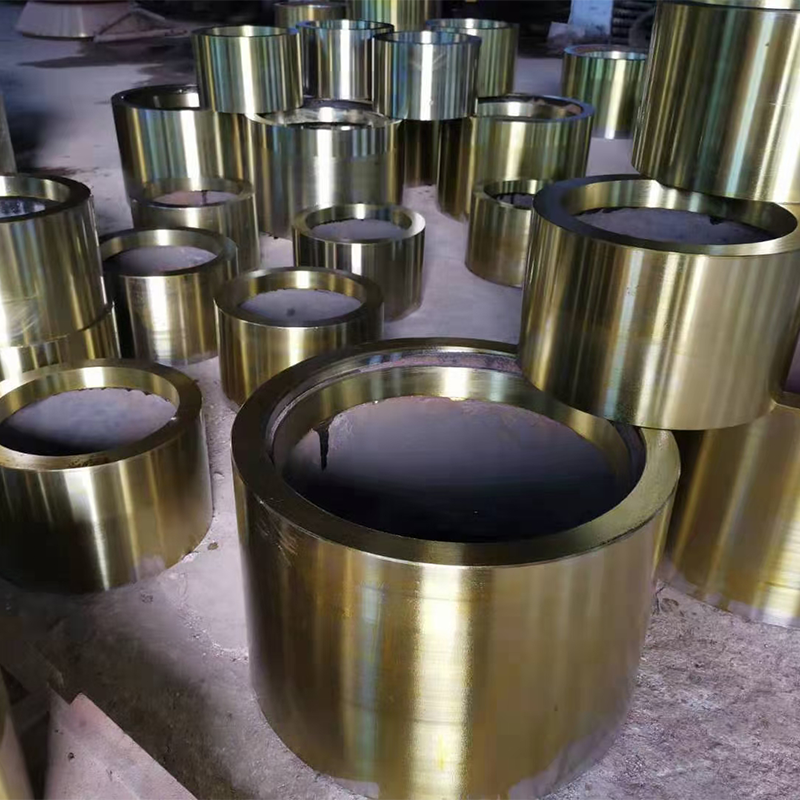

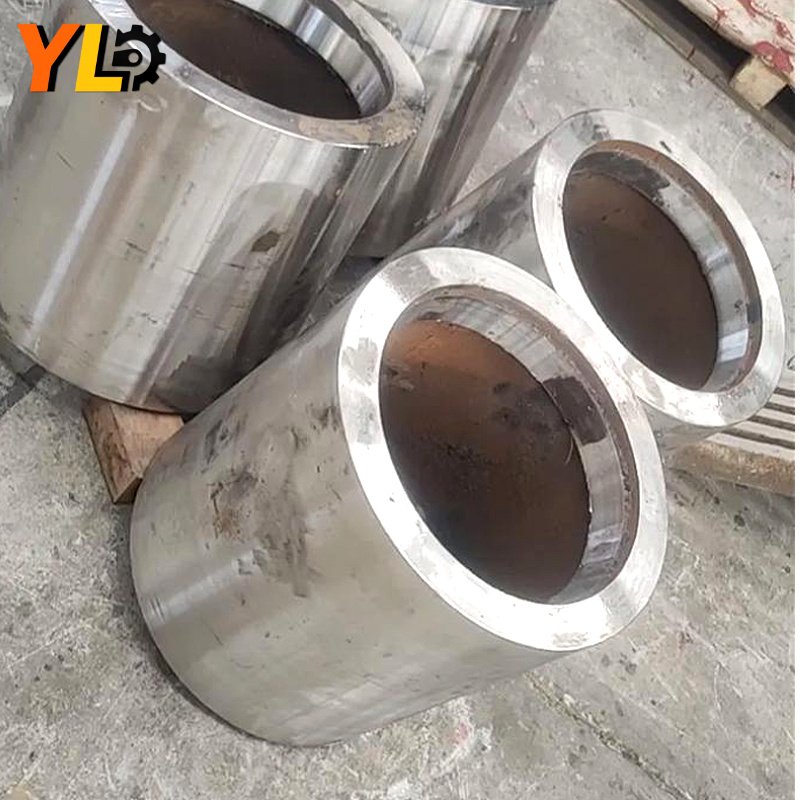

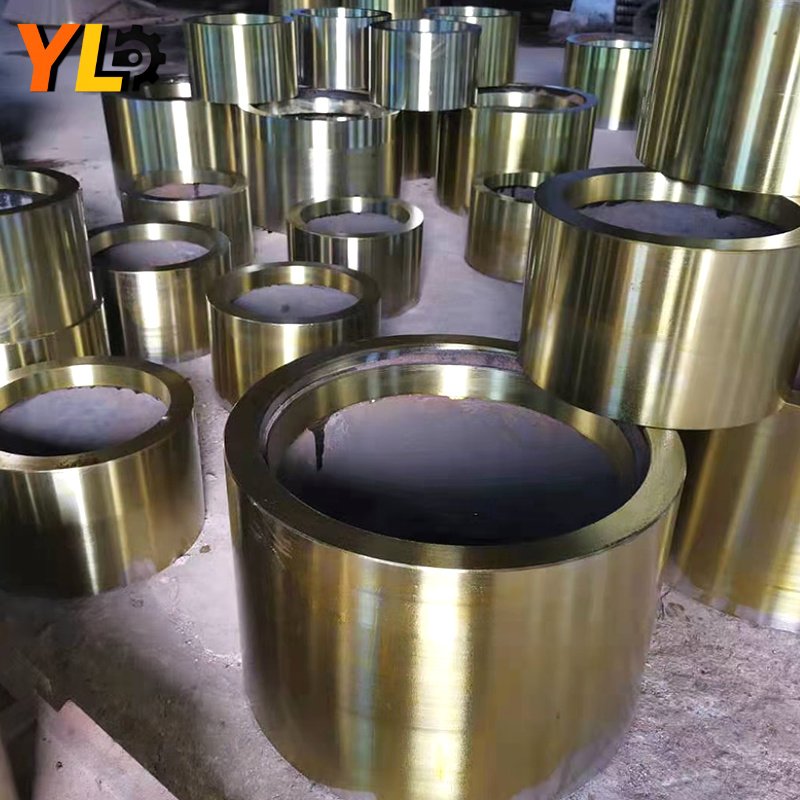

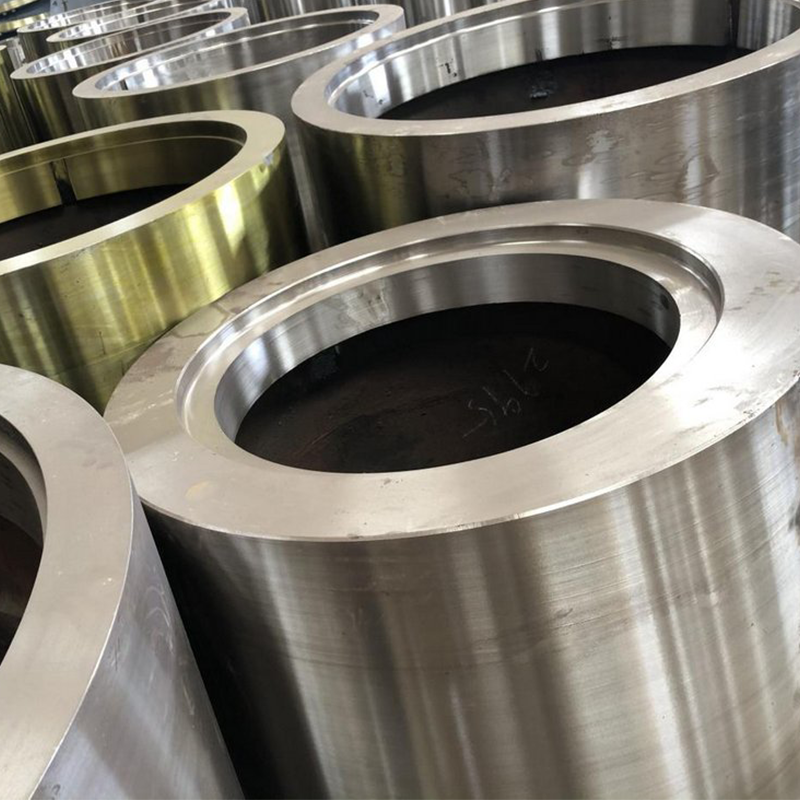

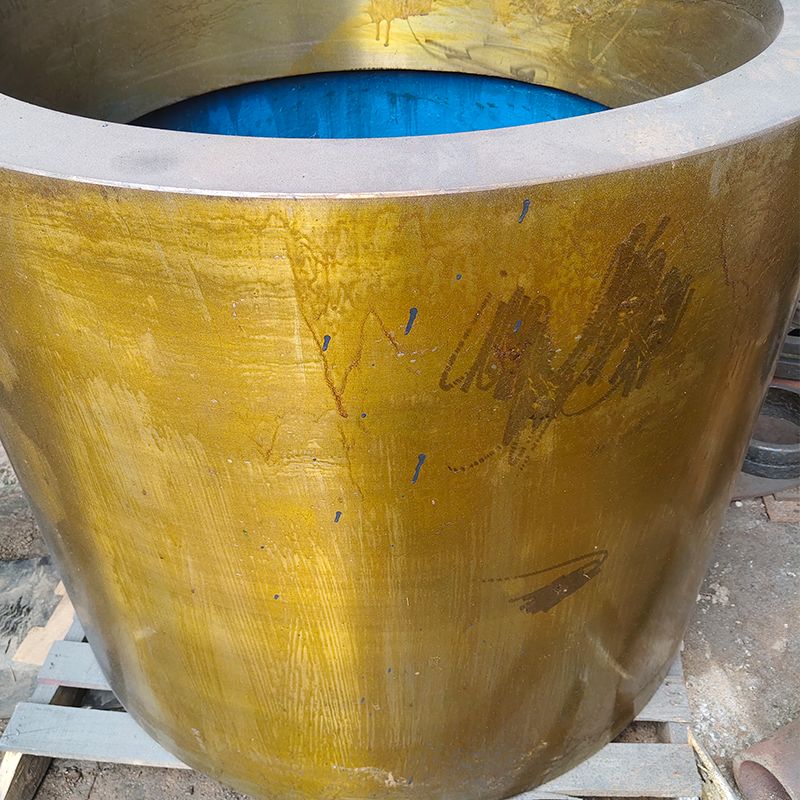

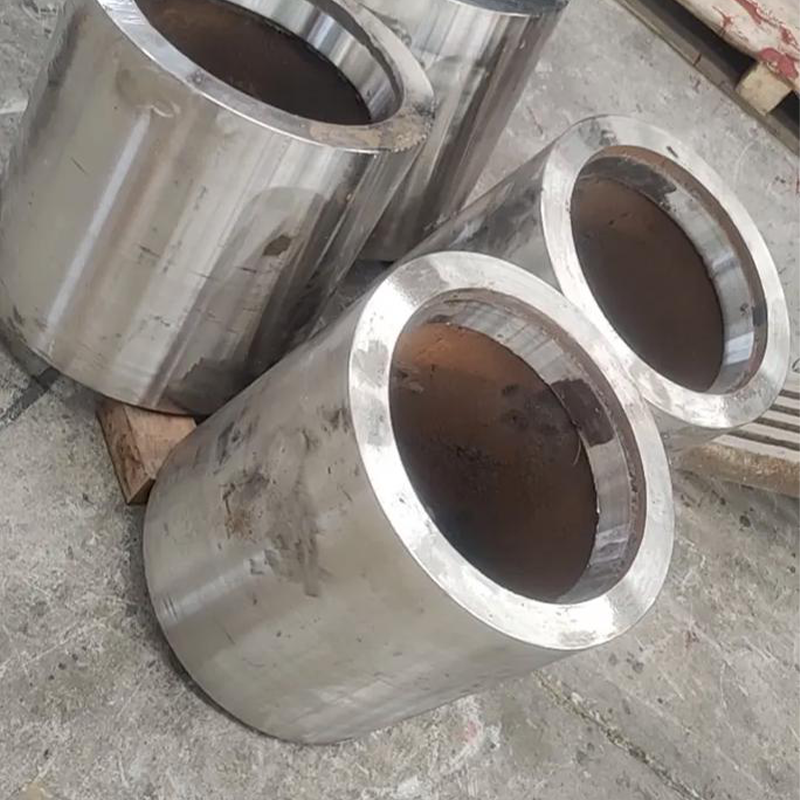

Mining Tooth Roller Crusher Wear Parts Roller Shell

Mining Tooth Roller Crusher Wear Parts Roller Shell

1. Key Wear Parts of Tooth Roller Crushers

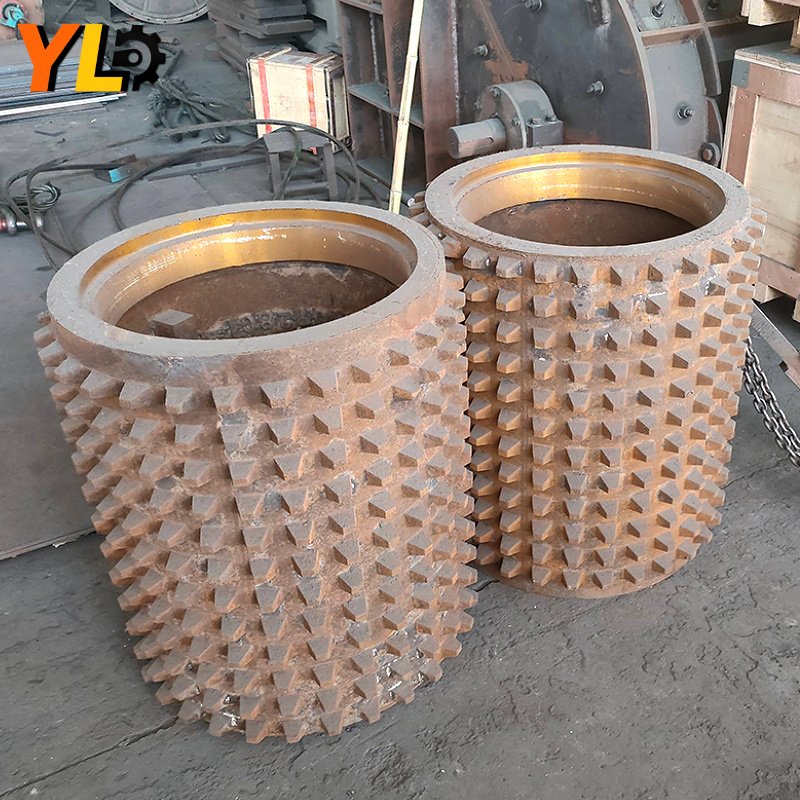

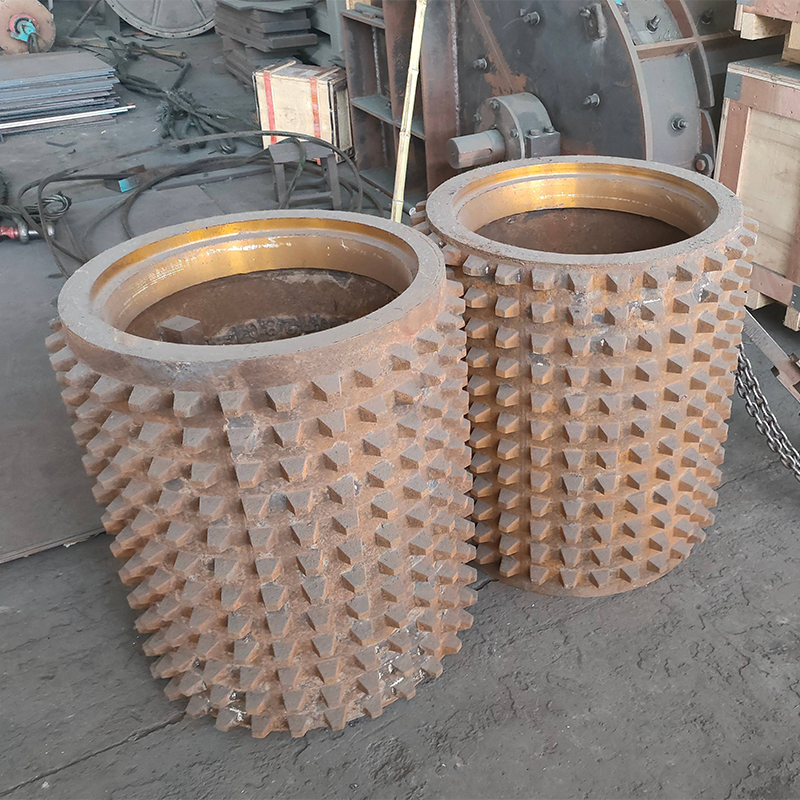

a. Roller Teeth (Pick Points)

• Function: Directly contact and break material by piercing, splitting, or tearing it. The shape, spacing, and arrangement of teeth determine crushing efficiency and particle size.
• Design Variations:
  • Sharp teeth: Suitable for brittle materials (e.g., coal) to reduce energy consumption.
  • Blunt/rounded teeth: Better for abrasive materials (e.g., sandstone) to resist wear.
  • Replaceable teeth: Bolted or welded onto the roller body for easy replacement, minimizing downtime.

b. Roller Body

• Function: Supports the teeth and transfers rotational force. It withstands continuous impact and friction from material.
• Structure: Often cylindrical with grooves or slots to secure the teeth. Some designs include cooling channels to prevent overheating in high-load operations.

c. Shafts and Bearings

• Function: Rotate the rollers via motor power. Bearings reduce friction between the shaft and roller housing.
• Wear Factors: Misalignment, excessive load, or lack of lubrication can cause premature wear, leading to vibration and reduced efficiency.

d. Side Plates/Liner Plates

• Function: Enclose the crushing chamber to prevent material spillage and guide material flow. They also protect the crusher frame from wear.

2. Materials for Wear Parts

（support custom）

3. Wear Mechanisms and Lifespan

• Abrasion: Material sliding against surfaces (e.g., coal dust wearing down teeth).
• Impact: Sudden collisions with large chunks (e.g., rock hitting teeth, causing chipping).
• Fatigue: Repeated stress (e.g., shafts bending slightly under load, leading to cracks).

• Roller teeth: 100–500 hours (coal) to 50–200 hours (abrasive rock).
• Roller body: 1–3 years (with periodic reconditioning).
• Bearings: 6–12 months (with proper lubrication).

4. Maintenance and Replacement Tips

• Regular Inspection: Check for tooth wear, cracks, or loosening; monitor bearing temperature and vibration.
• Lubrication: Keep bearings well-lubricated with high-temperature grease to reduce friction and heat.
• Proper Alignment: Ensure rollers are parallel to avoid uneven wear on teeth and shafts.
• Batch Replacement: Replace all teeth on a roller at once to maintain balanced crushing forces.
• Material Matching: Use carbide-tipped teeth for highly abrasive materials (e.g., granite) to extend life by 200–300%.

5. Manufacturer Considerations

• Customized parts (tooth shape, material) for specific mining needs.
• Heat-treated components for enhanced durability.
• After-sales support, including installation guidance and wear analysis.
